Product description

  • Brand:MINIX
  • Article number:MINIX NGC-iB NUC
  • Availability: In stock

Different models:

MINIX NGC-1 Windows 10 Home you can find here.

MINIX NGC-iB NUC with Windows 10 Pro you can find here.

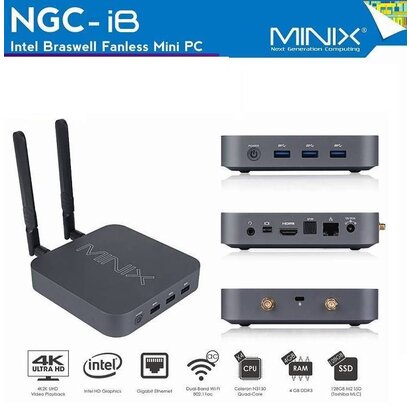

Short overview of the MINIX NGC-iB

  • 64-Bit NO OS on this NGC-iB
  • Double Wifi Antenna
  • CPU: 64-Bit 2.16 Ghz Quad Core Intel Celeron N3150
  • GPU: Intel HD Graphics with 12 cores
  • Working memory: 4GB DDR3L Ram (Samsung)
  • Solid State Drive (SSD) Storage: 128 GB M.2 SSD (Toshiba)
  • HDMI: 1.4 Max. 4K @ 30fps

Intel Celeron N3150 (BRASWELL) CPU

The MINIX NGC-iB features the Quad Core (4 processing cores) 64-Bit Intel Celeron N3150 processor. Its basic speed is 1.6 Ghz with a burst/turbo clocking speed of no less than 2.08 Ghz!

The N3150 makes use of the GPU / Video processor by Intel HD Graphics. This gpu has 12 units that have a standard speed of 320 Mhz and a burst/turbo speed of 640 Mhz!


DDR3 WORKING MEMORY

This new MINIX NGC-iB (NO OS) pc has a working memory of 4 GB DDR3 RAM. Samsung (which you can upgrade, if you want to)

What are the other improvements of DDR3, when compared to DDR2?

  • Performance with higher bandwidth, up until 1600 MT/s is standard.
  • Slightly improved latencies, measured in nanoseconds.
  • Better performance in case of low energy supply.
  • Improved low-energy possibilities.

SSD INTERNAL STORAGE

This tv box has a faster internal storage of no less than 128 GB. This internal storage is a Solid State Drive (SSD) by Toshiba. An SSD is very fast and shock proof. The Solid State Drive (SSD) is used increasingly more often in multiple laptops and computers. Why SSD and what is the difference compared to a 'regular' hard disk (HDD)? A Solid Stae Drive (SSD) is a digital type of storage, which uses memory such as Flash or SDRAM. A major difference with the traditional hard disks is that an SSD does not contain any moving parts, such as rotating disks. This makes the SSD much faster, quieter, and almost impossible to encounter system errors. The SSD can be upgraded if required.


WIFI 802.11 AC

The NCG-iB has a built-in 802.11 AC Wifi module. This module has 2 outlets to connect 2 external wifi antennas to. This will give you a very stable wifi connection.


MINIX NGC-iB can support WINDOWS (64-Bit) - Supports LINUX UBUNTU

The MINIX NGC-iB has no OS on it and supports Linux Ubuntu.  Ubuntu not Installed!

What is Ubuntu?

Ubuntu is, like Windows, an operating system (OS) for a PC, mini pc or another device. The major advantage is that there are no viruses, which means you never have to worry about that again. Ubuntu makes your device safer, faster, easier, and more stable.


CONNECTIVITY

- HDMI 1.4 Port (4K @ 30Hz)
- Mini Display Port
- Headphones connection
- Microphone connection
- 3 x USB 3.0 Port
- Gigabit Ethernet Port
- 12V 3000Mah Adapter connector
- Optical SPDIF
- 2 x Antenna connector
- 1 x Kensington Lock Ready




WHAT'S IN THE BOX?

You will notice that the MINIX NCG-iB contains many high-end accessories.

  • Minix NGC-iB NO OS installed
  • EU 12V 3000 Mah Adapter
  • 1.4 HDMI Cable
  • 2 x Dual WIFI Antenne
  • English/German Manual/Quickstart guide
  • Brochure with other Minix Products
